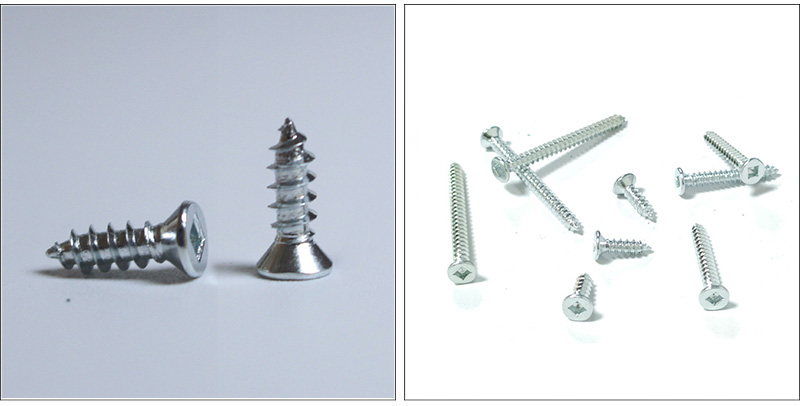

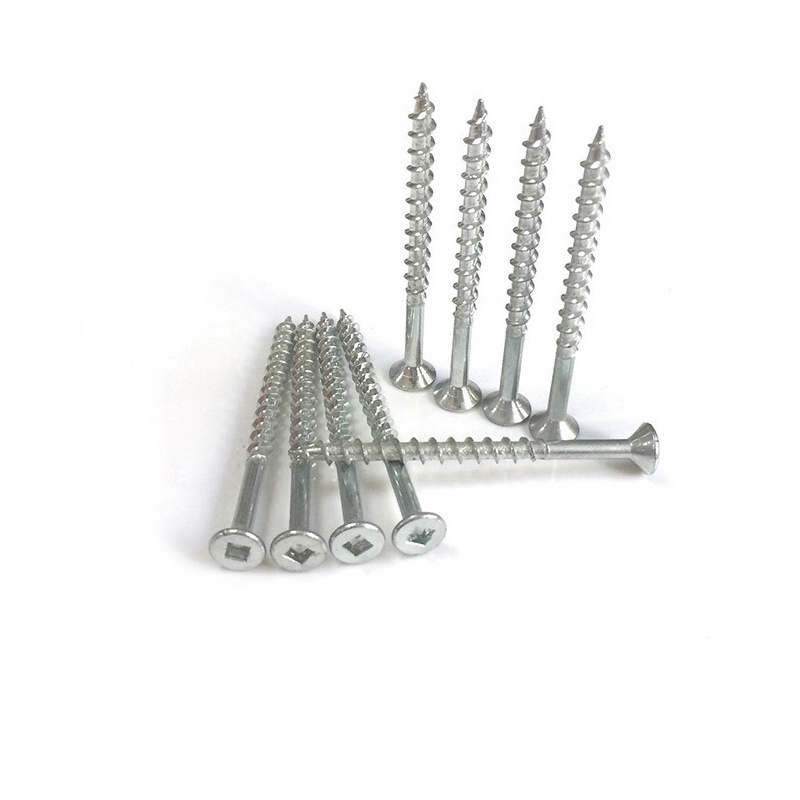

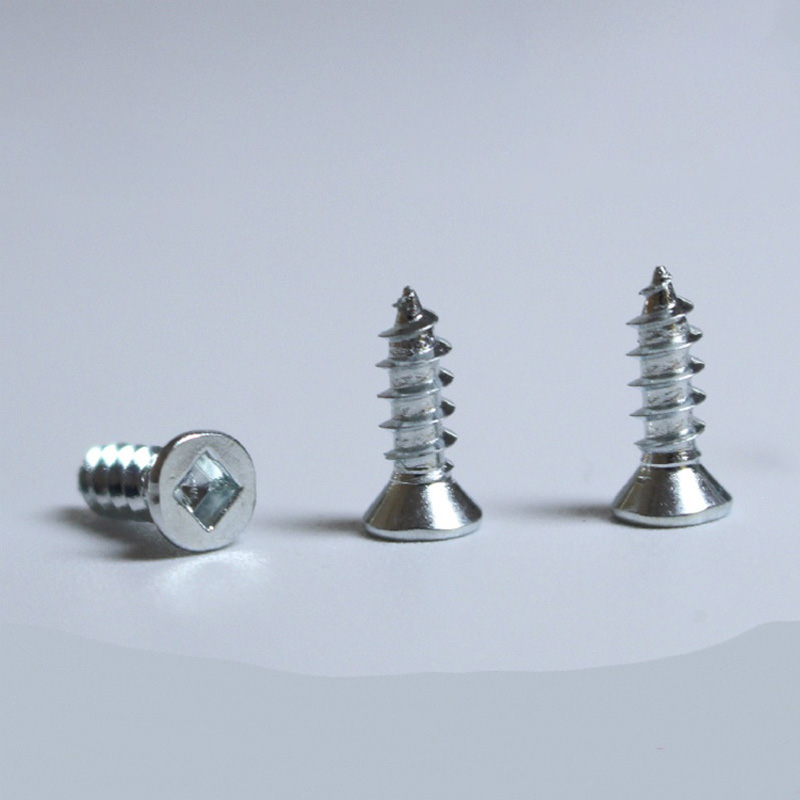

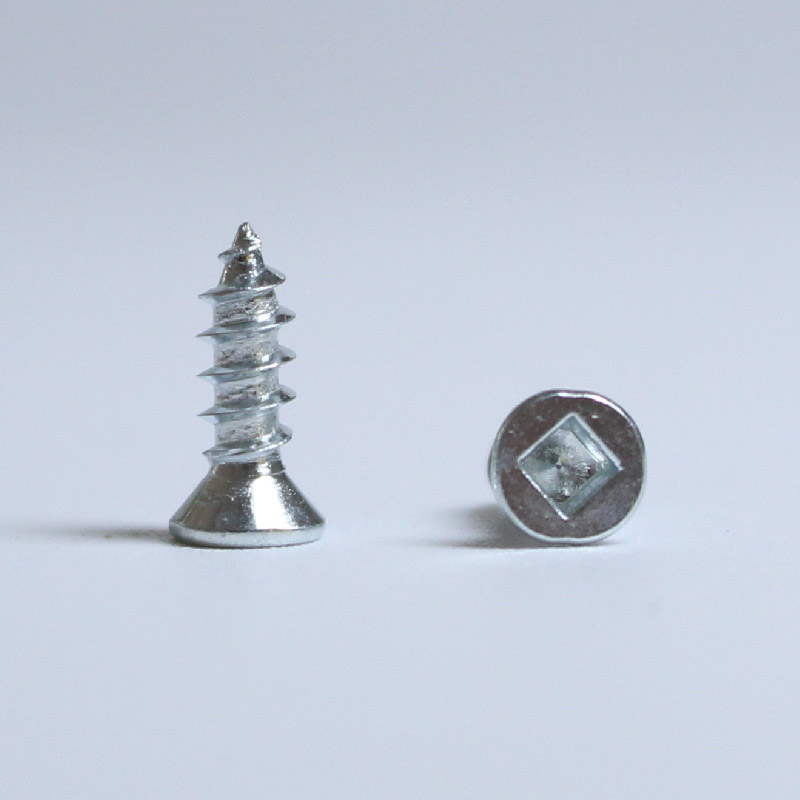

Square Drive Countersunk Screw

The square drive countersunk screw has a square-shaped drive. It can transfer up to 30% more torque than Phillips - head screws. You can install it faster and the driver tool won't wear out as quickly.

This is really important on automated production lines. You need to tighten things the same way every time there, and this screw helps with that.

The walls of the square recess in the screw are deep. So, even if you're using the driver at a really weird angle, the bit won't pop out.

Engineers really like the square drive countersunk screw for high-stress joints. In things like aerospace or automotive parts, you have to control the torque very precisely, and this screw is good for that.

Regular inspection

To keep square drive countersunk screw working right, check them regularly for rust or worn threads. Blow out dirt from the square grooves with compressed air or scrub them with a brush. In hot environments, slap on some anti-seize grease to keep threads from locking up. Keep them somewhere dry to avoid moisture-related rust.

If a square drive countersunk screw’s looking rough, swap it out ASAP to keep things stable and safe. When installing, line up your tool properly with the square hole,this prevents the grooves from getting messed up. Stick to these basics, and your screws should hold up fine.

Customized

Q: Can square drive countersunk screw be customized to non-standard sizes or head angles?

A: You can get custom square drive countersunk screw,like non-standard sizes (think M3 to M8), lengths, or head angles (usually 82°or 90°). But just a heads-up: if you need something bespoke, it might take longer to get and cost a bit more.

Uses precise tools to keep the square recess shape right,this stops the driver tool from slipping when you use it. When you order, tell us upfront about thread pitch, coatings (like zinc-plated or black oxide), or how you want them packaged.

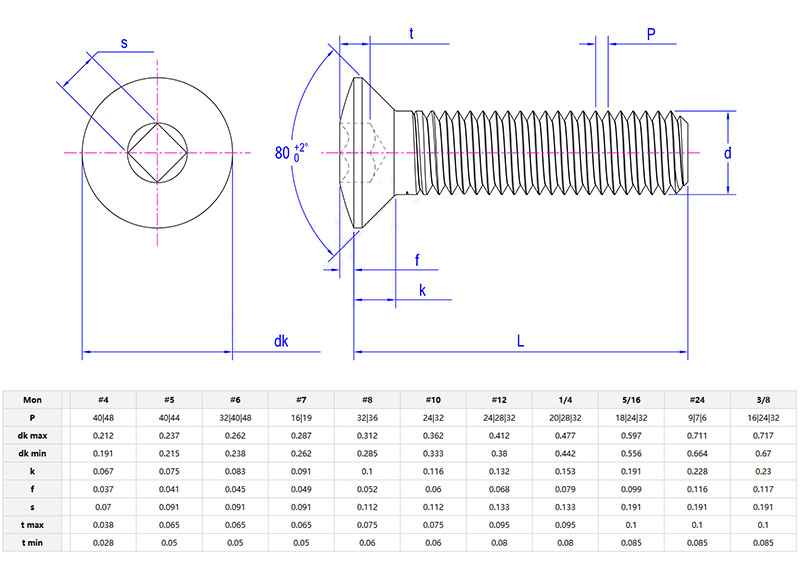

For standard sizes, they usually follow ASME B18.6.1 or ISO 10642 to ensure they work with other parts. It’s best to confirm all these details early to avoid any issues!

Material selection
