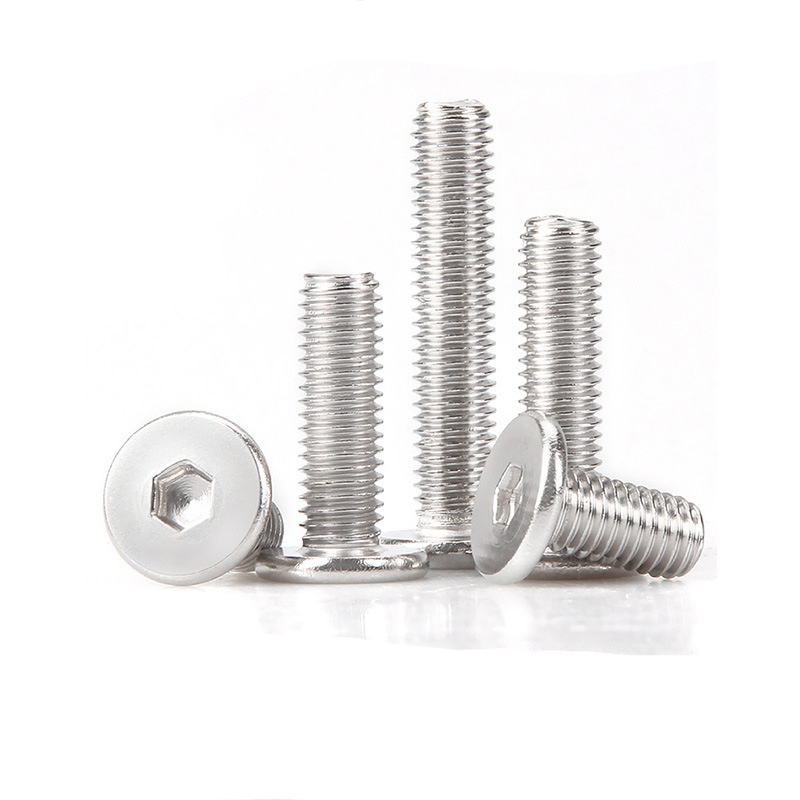

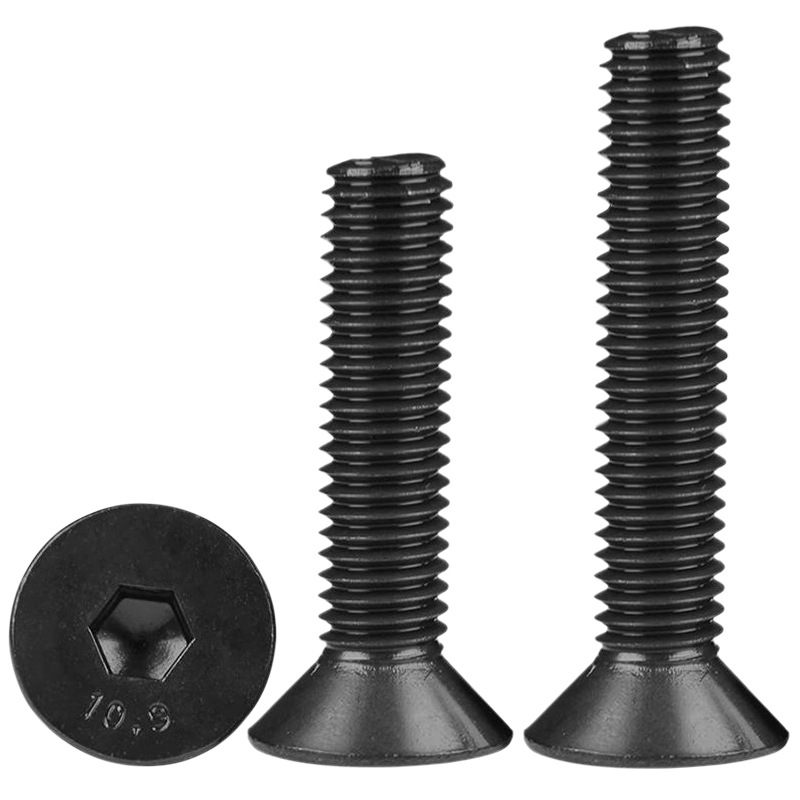

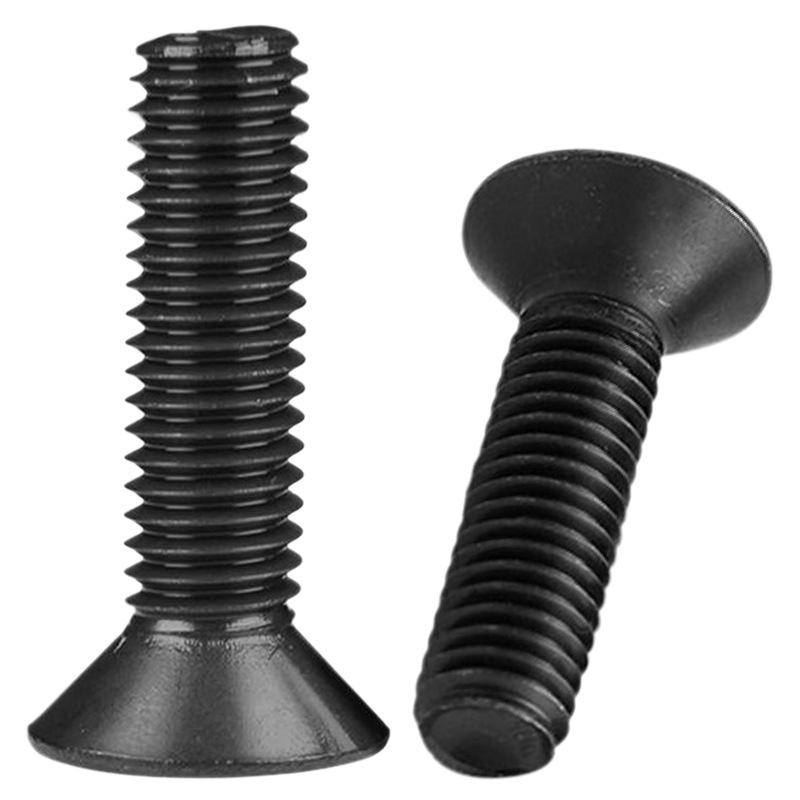

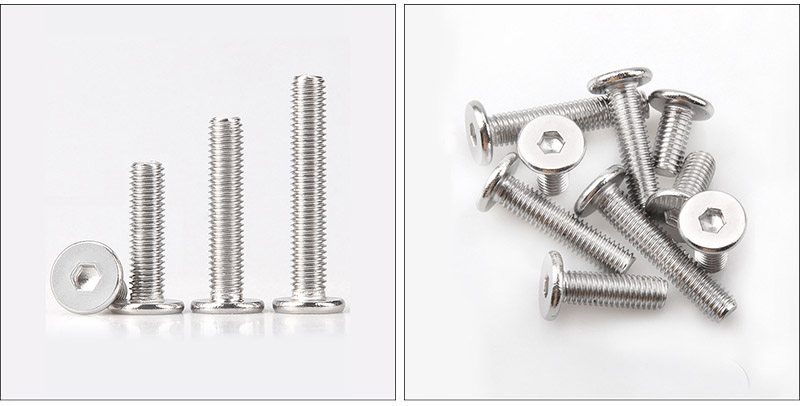

Countersunk Head Hex Socket Screw

Countersunk head hex socket screw get special coatings to last longer. Electroplated zinc or nickel adds a layer that fights rust, while black oxide treatment makes them more resistant to wear and less shiny. In tough environments, PTFE (Teflon) or Dacromet coatings help with lubrication and stop them from sticking or seizing. Stainless steel screws are passivated to better protect the oxide layer of the screws. For aesthetic reasons, aluminum screws can be polished or color anodized. The coating prolongs the service life of the countersunk head hex socket screws, reduces friction during installation, maintains the same firmness, and prevents thread damage or jamming.

Choose the right size

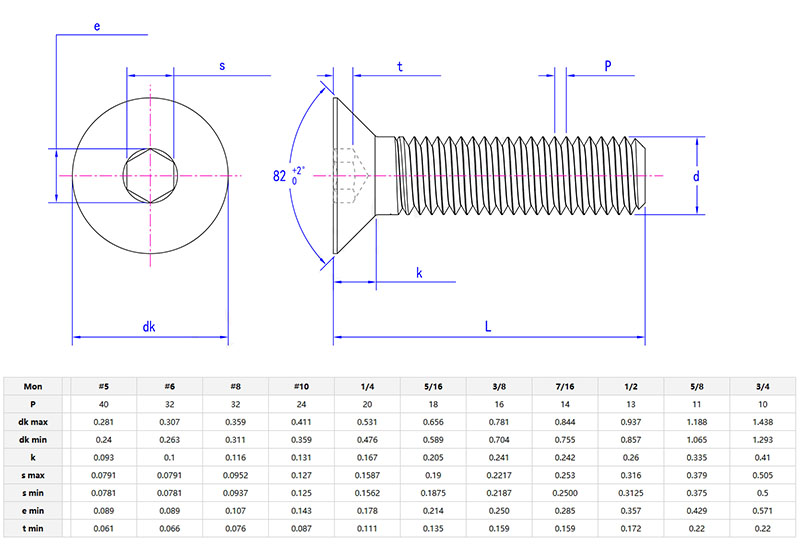

Countersunk head hex socket screw come in metric and imperial sizes. The diameters range from M2 to M24 (metric) or #4 to 1 inch (imperial), with lengths from 5mm up to 200mm. Their threads follow ISO standards (coarse or fine) or Unified standards (UNC/UNF). For special machinery, you can get custom options like left-hand threads or non-standard thread pitches. The head angle is standard,90 degrees for ISO or 82 degrees for ANSI,to match common countersunk drill bits. Detailed size charts list the socket sizes needed (like a 2.5mm hex key for M5 screws) to make sure they work with your tools. They come in different packaging too,bulk packs for big industrial orders or pre-sorted kits for smaller repairs.

High-vibration environments

Q:  Can countersunk head hex socket screw withstand high-vibration environments?

A: Countersunk head hex socket screw can work in high-vibration areas, but you need to use thread-locking glue or mechanical lock washers with them. The hex drive design lets you tighten them more securely than Phillips or slotted screws, which means they’re less likely to come loose. For important applications, look for screws with serrated bottoms or pre-applied thread-locking strips. When installing, follow our torque specs to avoid over-tightening,too much force can weaken the screw in vibrating conditions.
